Project CARS 3

Setup Guide

Project CARS 3

Overview

Supported versions of Project CARS 3

Windows PC

Supported Telemetry Apps

RS Dash

Jump to instructions for RS Dash (UDP Interface)

Jump to instructions for RS Dash (Shared Memory Interface)

Jump to troubleshooting

RS Dash
UDP Interface

These instructions for specifically for the "RS Dash" app. There are instructions for the "RS Dash ASR" app above"

Install RS Dash on any Windows, iOS and/or Android device(s) that you want to display telemetry on.

In the RS Dash app

(for each device you are running RS Dash on)

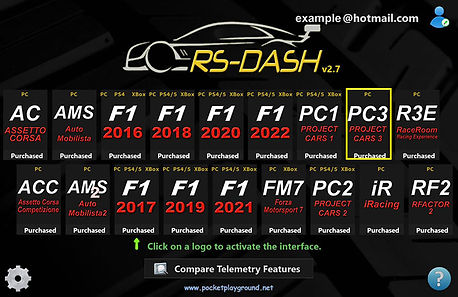

  • Select the [PC3] game tile

  • The current IP address the RS Dash device will then be shown, along with a message indicating it is "Waiting for game to start..."

RS Dash
RS Dash
In the Project CARS 3 game

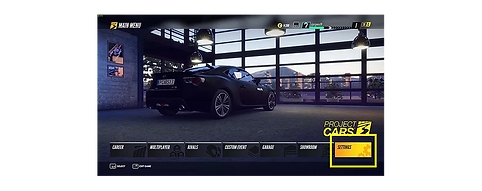

  • Select [Settings] from the main menu along the bottom

Project CARS 3

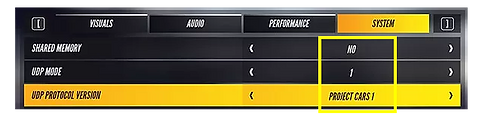

  • Select the [System] tab

  • Set "Shared Memory" to "No"
    Note: This option will only be visible to PC users.

  • Set "UDP Mode" to "1"
    Hint: If you experience telemetry lag, please try "4" instead.

  • Set "UDP Protocol Version" to "Project CARS 1"

  • Click "Back"

Project CARS 3

​The RS Dash app app should now be showing the dashboards once you have left the settings page.

Hint: In the RS Dash setting there is a "Legacy NetCode" option which can help reduce lag on some devices. If you enable this option you should also set your Project CARS 3 UDP Mode to 4 for the best results.

IMPORTANT: Project CARS 3 only supports outputting its UDP telemetry as a global network broadcast on UDP port 5606. This means it will work with multiple devices by default, however please be aware that some Android devices and some wireless routers will have trouble processing the telemetry when it is sent this way. This can result in telemetry lag or possibly even no telemetry at all (in rare cases). If you are experiencing lag issues, please check your router settings and try disabling settings such as "UDP Flood Protection", "DOS (Denial of Service) Protection", "Multicast Flood Protection" or similarly named. Lag issues can also sometimes be resolved by slowing down the UDP rate, try using UDP 4 in the game and enabling the "Legacy Netcode" option in RS Dash if you are experiencing telemetry lag to see if that helps.

RSDash

RS Dash
Shared Memory Interface (PC Only)

These instructions for specifically for the "RS Dash" app. There are instructions for the "RS Dash ASR" app above"

Install the RS Transmitter app on the Windows PC that Project CARS 3 is installed on.

Install RS Dash on any Windows, iOS and/or Android device(s) that you want to display telemetry on.

In the RS Dash app

(for each device you are running RS Dash on)

  • Select the [PC3] game tile

  • The current IP address the RS Dash device will then be shown, along with a message indicating it is "Waiting for game to start..."

RS Dash
RS Dash
In the Project CARS 3 game

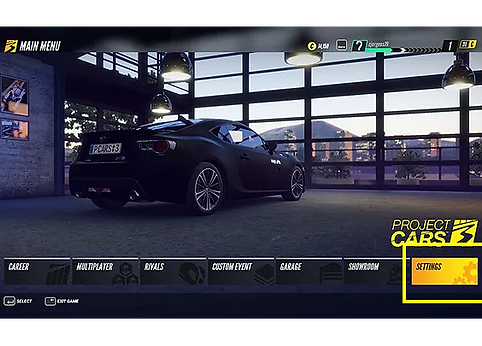

  • Select [Settings] from the main menu along the bottom

Project CARS 3
  • Select the [System] tab

  • Set "Shared Memory" to "Project CARS 2"
    Note: This option will only be visible to PC users.

  • Set "UDP Mode" to "Off"

  • Set "UDP Protocol Version" to "Project CARS 1"

  • Click "Back"

Project CARS 3
​In the RS Transmitter app
  • Start the RS Transmitter app on the PC that Project CARS 3 runs on.

  • Select the PC2 tile (as PCARS3 uses the PC2 shared memory format)

RS Transmitter
  • Enter the IP Address of the device RS Dash is running on as shown in RS Dash just above the "Waiting for RS Transmitter Signal" message. If you have multiple devices, just enter the IP Address of one of them.

  • The "Use Broadcast Mode" flag should be OFF if you only have a single device running RS Dash, or ON if you have multiple devices running RS Dash.

  • The Update Speed should be 16ms. If you experience lag in the dashboards, try increasing this to 32 or 50ms.

  • Click the [Start Transmitter] button.

RS Transmitter
RS Transmitter

​In the RS Dash app, the "Waiting for RS Transmitter Signal..." message should now have changed to either "Waiting for game to start.." (if Project CARS 3 is not yet running) or the dashboard display should be shown if Project CARS 3 is running.

RSDashSharedMem

Troubleshooting

  • At this time the Project CARS 3 game only has telemetry support on the PC version.

  • ​IMPORTANT: Project CARS only supports outputting its UDP telemetry as a network broadcast. This means it will work with multiple devices by default, however please be aware that some Android devices and some WiFi routers will have trouble processing the telemetry when it is sent this way. This will result in telemetry lag or possibly even no telemetry feed at all (in rare cases). If you are experiencing lag issues, please check your router settings and try disabling settings such as "UDP Flood Protection", "DOS (Denial of Service) Protection", "Multicast Flood Protection" or similarly named. Lag issues can sometimes be resolved by slowing down the UDP rate, try using UDP 4 if you are experiencing telemetry lag to see if that helps.

  • RS Dash has a "Legacy NetCode" option which can help reduce lag on some devices. If you enable this Legacy NetCode option you should also set the UDP Frequency to 4 for the best results.

  • RS Transmitter users - You must be running Project CARS on the same Windows PC that you are running the RS Transmitter application on.

​​

More Troubleshooting Options

Networking/Connectivity Troubleshooting Tips

RS Transmitter Troubleshooting Tips

General Troubleshooting Tips
